Silonn Slim09B Countertop Ice Maker Manuals

About Silonn SLIM09B Countertop Ice Maker

Silonn Slim09B Countertop ice maker can make 9 bullet-shaped ice cubes in 6 minutes only. Ice cubes can make into two size, you can choose to make small ice cubes or large ice cubes.

This ice maker consume about 1.5A when making the ice and 1.8A when harvesting the ice. simple and no much noise, you can monitor the ice capacity with the transparant lid.

When ice is full, sensor will detect and stops producing the ice to prevent overflooding. The control panel is clearly to use. There is indicator light when the water is empty or the ice basket is full.

Download Silonn Slim09B Countertop Ice Maker Manuals

Silonn Slim09B Countertop Ice Maker Manuals PDF manual download - Free user guide from GManuals
Brand Silonn
Model SLIM09B SLIM09T SLIM09W SLIM09G1
Category Ice Maker

File Size 0.8 Mb
Pages 16 Pages
Language English
718 views

Important Safety Information

To reduce the risk of injury or property damage, please follow the safety precautions that you can read in the Silonn Slim09b countertop ice maker manual.

This unit contains an isobutane refrigerant, also known as R600a, a natural gas with high environmental compatibility. However, it is also combustible. Adhere to the warnings below to reduce the risk of injury or property damage.

Silonn SLIM09 Countertop Ice Maker Parts

Silonn SLIM09 countertop ice maker parts

  1. Transparent Large Viewing Window
  2. Ice Full Sensor
  3. Ice Shovel
  4. Maximum Water Fill Line
  5. Air Exhaust Fan
  6. Control Panel
  7. Handle
  8. Drain Plug
  9. Ice Basket
  10. Ice Scoop

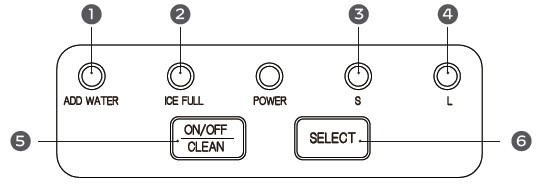

Silonn SLIM09 Control panel

Silonn SLIM09 Control panel

  1. Add Water: The indicator light turns red when the water reservoir needs water.
  2. Ice Full: The indicator light turns red when the ice basket is full
  3. S: The indicator light turns green when small ice mode is selected
  4. L: The indicator light turns green when large ice mode is selected
  5. ON/OFF/CLEAN:
    • Short press the button to turn on the ice maker and the Power indicator light turn green
    • Short press the button to turn off the ice maker and the power indicator will flashes in green
    • When the ice maker in standby mode, long press the button for 5 seconds and the ice maker will switch to self-cleaning mode. The indicator light of S and L will flash in green consecutively
  6. Select: Confirming large ice mode or small ice mode.

How to use Silonn Slim09 Countertop Ice Maker

Before first use

  1. Stand upright for 24hours
  2. Discard first 4 cycles of ice
  3. Installing the handle
    • Position the handle over the insert hole
    • Fit the handle into the insert notch
    • Lift back to lock into place
  4. Dont place the ice maker in unstable place
  5. Only use drinking water only
  6. Dont use in high or low temps

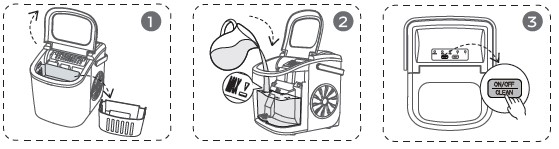

How to use Ice maker

  1. Open cover and remove basket
  2. Pour water, do not exceed the MAX water mark
  3. Press the ON/OFF button
    How to use silonn slim09 countertop ice maker
  4. Press SELECT button to choose ice cube size
  5. Wait 6 - 13 minutes base on room temp and ice size
  6. When ICE FULL indicator is on, the ice is full and ready to consume
  7. When ADD WATER indicator is red, add water and press ON/OFF button

How to clean and maintenance the Slim09 ice maker

To keep your ice tasting fresh and the unit looking good, we recommed cleaning the unit once per week.

Manual Cleaning

  1. Remove the basket
  2. Clean using a soft cloth with warm water and vinegar, then rinse with clean water
  3. Drain plug, drain excess water over sink
  4. Clean exterior with cloth and mild dishwashing soap

Self-cleaning mode

  1. Remove the basket and add water
  2. In standby mode, press and hold ON/OFF/CLEANING button for 5 sec to start self-cleaning
  3. Drain plug, drain excess water over sink
  4. Clean exterior with cloth and mild dishwashing soap

Silonn SLIM09 Countertop Ice Maker Spesifications

Model SLIM09B/SLIM09W/ SLIM09G1 SLIM09T
Voltage/Frequency 115V/60Hz 115V/60Hz
Ice-making Current 1.5A 1.5A
Ice-harvesting Current 1.8A 1.8A
Working Power ≤160W ≤160W
Water Reservoir 1.2L (0.32gal) 1.2L (0.32gal)
Ice Basket Capacity 1.32 lbs (0.6KG) 1.32 lbs (0.6KG)
Ice-making Rate 26 lbs per day 26 lbs per day
Ice Shape Bullet Bullet
Ice Size Small or Large Small or Large
Material ABS, PP ABS, PP, Stainless Steel

Troubleshooting the SLIM09 problem

If your Silonn SLIM09 Countertop Ice Maker get in trouble. you can follow the guide in the Manual.

You will get information about the common problems with the Ice Maker, possible cause and solution. If you still have trouble with your ice maker, please contact Silonn customer care

If you have any questions about the Silonn SLIM09B Countertop Ice Maker user manuals, please leave comment in the form bellow
