Silonn Slim02 Countertop Ice Maker Manuals

About Silonn SLIM02 Countertop Ice Maker

Don't Ever Run Out of Ice Again!! This highly efficient portable ice maker can produce up to 24 ice cubes in as little as 13 minutes. With a daily ice production capacity of 45 pounds, this remarkable ice maker is more than capable of meeting the demands of your household, children, and even outdoor gatherings. Say goodbye to run out for ice again!

No-Fuss Ice-Making: This ice maker's got two easy ways to fill it up. You may opt to utilize a water bucket (not included) with a 5-liter/1.32-gallon capacity or fill it manually. The ice basket can hold up to 2.6 pounds of ice, and once it reaches capacity, a weight sensor will automatically halt the ice-making process. Should any ice melt, the water will be collected at the base for recycling.

Zero Effort Cleaning Function: Cleaning daily-use electrical appliances can often be a troublesome task. As a modern home appliance, this countertop ice maker comes equipped with a self-cleaning function. With a single press on the control panel, it takes just 20 minutes to complete a thorough self-cleaning cycle."

Simple displays the current running mode using LCD screen on the control panel . With a single panel, you have complete control over this ice machine. By adjusting the timer, you can customize the ice cubes to your preferred thickness—whether thin, medium, or thick. Furthermore, when the water level runs low, the ice maker will automatically sound an alarm to prompt refilling.

Important Safety Instructions

To reduce the risk of fire, explosion, electrical shock, or injury when using the ice maker, follow these basic safety precautions. Personal safety is very important, please read and follow all safety instructions in this manuals before using the ice maker.

Silonn Slim02 Ice Maker Parts

1. Control panel
2. Ice basket
3. Evaporator
4. Water separator pipe
5. Top Cover
6. Cover for water reservoir
7. Support seat for watter bottle
8. Hot air outlet
9. Water draining cap
10. Ice scoop

Cleaning and Maintaining Silonn Slim02 Ice Maker

After using the ice maker for a long time, we also suggest you should clean it. In particular, you must clean the water separator pipe and the water filters periodically.

Cleaning the Separator Pipe

If the compressor and water pump work normally, but there is little or no water running down from the separator pipe, please remove the separator pipe to check if it is blocked

1. Press the ON/OFF button to turn off the ice maker.
2. Pinch the left end of the separator pipe and pry it out.
3. Clean each holes on the separator pipe.
4. Connect the separator pipe to the hose on the right side, then clip the left end of the separator pipe into the slot on the left side. Please make sure the holes point to down.

How to drain out the water from the water tank and water reservoir completely？

Because the water in the water reservoir is blocking to drain port by the draining plug, if you want to drain away all the water, please plug in the ice maker and but don’t turn on it, then remove the water draining cap at the bottom. Wait a few minutes while all of the water is let out.

Clean the Water Tank and the Water Reservoir

1. Clean them with diluted detergent, warm water and a soft cloth.
2. Then use the water to rinse the inside, and drain out the water. It will help you keep the ice maker and ice cube hygienically, and also make the ice maker work normally.

Please Note: When cleaning, if find that the ice cubes left on the evaporator and can not be taken out easily, you can turn on the ice maker to let it enter the ice making process, then press “ON/OFF” button for more than 5 seconds to let the ice maker starts ice harvest process to melt the ice cubes. It will help you remove the hard ice cubes.

Storage

1. The outside of the ice maker should be cleaned regularly with a mild detergent solution and warm water.
2. When the ice maker is not in use for a long time, drain out the water.

How To Use The Self-cleaning Function

Start the self-cleaning program: Plug on the unit, and press the “TIMER/CLEAN” button for more than 5 seconds to enter the self-cleaning program which takes 20 minutes. the symbol <Fan > rotates on screen window, the countdown area at the left top displays 20M.
Cancel the self-cleaning program: It takes about 20 minutes to complete one self-cleaning program. When the program is over, the system will be in off-state automatically. And also you can press the “ON/OFF” button to cancel the self-cleaning program by force

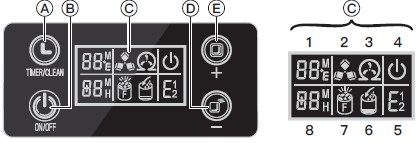

Silonn Slim02 Ice Maker Control Panel

1. TIMER/CLEAN
   buttonShort press this button once to enter the timer setting program; Long press this button for more than 5 seconds to start the self-cleaning function.
2. ON/OFF button
   When the ice maker is off, press this button to turn on the ice maker; When the ice maker is making the ice cubes, long press this button for more than 5 seconds and the ice maker will switch to ice harvest process by force.
3. LCD Display window
   1. Countdown symbol for ambient temperature and ice-making: When the display shows <M>, it means the countdown for ice-making; when the display shows <℉>, it means ambient temperature.
   2. Ice cube symbol: When the symbol is rotating, the ice maker is making ice cubes; When the symbol flashes, the ice maker is harvesting ice cubes.
   3. Automatic self-cleaning symbol display.
   4. ON/OFF symbol.
   5. The error code:
      E1: Failure of the ambient temperature sensor.
      E2: Failure of the water temperature sensor.
      E: Ice formation anomaly or refrigerant leaked.
   6. Lack water warning symbol.
   7. Ice full warning symbol.
   8. Time setting display area. When the screen window shows <H>, timer unit ON/OFF; When the screen window shows <M>, setting ice-making time.
4. Ice making and timer reduce
5. Ice making and timer increase

How to use Silonn Slim02 Ice Maker

Before First Use

Before using the ice maker, it is highly recommended to clean it thoroughly.

1. Remove the exterior and interior packaging. Check that the ice basket and ice scoop are included. If any parts are missing, please contact customer service
2. Take out the ice basket and clean it with hot water, detergent and a non-abrasive sponge
3. Clean the interior with diluted detergent, warm water and a soft cloth. Then use the water to rinse the inside parts, Unplug the water drainage cap on the bottom of the ice maker to empty the water in the water tank. If you need to empty the water in the reservoir, you need to plug the power but not turn on it, then unplug the water drainage cap to empty the water.
4. Wipe the outside of the ice maker with a mild detergent solution and warm water.
5. Dry the interior and exterior of the ice maker with a soft cloth.

Preparing for Use

1. Find a location for the ice maker that is protected from direct sunlight and other sources of heat (i.e.: stove, furnace, radiator). Place the ice maker on a leveled surface. Maker sure that there is at least 6 inches of space between the back and sides of your ice maker and the wall.
2. The ice maker must be positioned so that the plug is accessible.
3. Allow one hour for the refrigerant fluid to settle before plugging the ice maker in.
4. fill with drinkable water only.
5. Check and clean the water tank, reservoir, filter screen and separator pipe regularly so as to ensure it is not blocked by any dirty impurities.
6. The ice-making capacity depends on the water temperature. The colder the water, the more ice is produced.
7. The ice-making capacity depends on the ambient temperature where the ice maker is placed. The colder ambient temperature, the more ice is produced.
8. The quality of the water used will affect the working life of the circulating pump. It is best to use pure water or distilled water. Some abnormal sounds in the pump working process are caused by impurities in the water, which is a normal phenomenon and does not affect the use of the ice maker.
9. There will be a delay of 3 minutes when the compressor restarts during the working process.

How to use Silonn Slim02 Countertop Ice Maker

1. Remove Cover And Pour Into Water
2. Turn on the ice maker
3. Set The Thickness Of The Ice Cubes
4. Harvest The Ice Cubes During The Ice-making Process
5. How to set timer
6. How to cancel the timer
7. How to drain out the water

For detailed about how to use the ice maker, you can read in the SIlonn Slim02 Countertop ice maker user manual

Troubleshooting Silonn Slim02 Ice Maker

Silonn Slim02 Ice Maker Spesification & Circuit Diagram

Specification

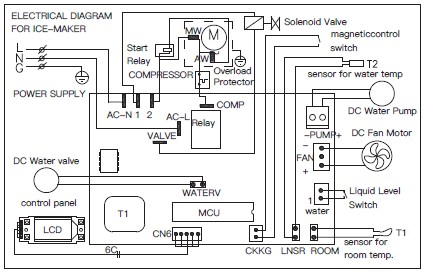

Circuit Diagram
