SILONN SLIM01B SLIM01W Countertop Bullet Ice Maker User Manual

Important Safety Information

To reduce the risk, please follow these basic safety precautions:

1. Before using Ice maker, please check that the Voltage power match to the label on the appliance nameplate
2. This ice maker must be grounded
3. Avoid using extension cord because it may overheat and cause a risk of fire.
4. Children are not allowed to operate the ice maker.
5. Do not user water that unsafe or unknown quality.
6. Do not remove any safety, warning or product information labels from the unit
7. Do not touch the ecaporator with your hands while the ice maker is operating
8. Do not plug or unplug the unit with wet hands
9. The unit must be properly installed and located following the installation intructions before it used. The unit is for indoor household use only.
10. Do not store or use flammable vapors or liquids near the unit
11. Do not immerse any part of the unit in water
12. Do not attempt to disassemble, repair or modify or replace any part of the ice maker without permission

This unit contains an isobutane refrigerant, also known as R600a, a natural gas with high environmental compatibilty. However, it's also combustible. Adhere to the warnings below to reduce the risk of injury or property damage.

1. Handling , installing and operating the unit with care to avoid damage to the refrigerant tubing.
2. Disposal of the unit under Federal and Local Regulations
3. Keep ventialtion openings in the unit enclosures or the built-in structure clear of obstruction
4. Do not place the ice maker near heat sources such as an oven
5. Ensure a minimum of three inches of clearance around the side and back walls of the unit for proper air circulation
6. Do not palce the ice maker in direct sunlight.

Silonn Slim01W Slim01b Product Parts

1. Large Viewing Window
2. Ice Full Sensor
3. Ice Shovel
4. Maximum Water Fill Line
5. Air Exhaust Fan
6. Control Panel
7. Drain Plug
8. Ice Basket
9. Ice Scoop

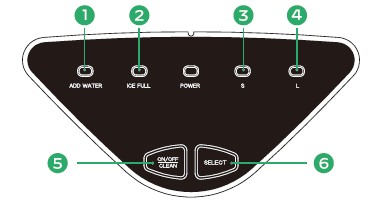

Silonn Slim01W Slim01b Control Panel

How to Use Silonn Slim01W Slim01b Ice Maker

Before First Use

1. Stand upright for 24hrs
2. Check for accessories
3. If missing contact customer services
4. Discard first 4 cycles of ice
5. Use in ambient temperature 10ºC ~ 32ºC
6. Add colder water is better, more cycles = perfect shape

How to Use Your Ice Maker

1. Open Cover and remove basket

2. Pour water, do not exceed the "MAX" water mark

3. Press the ON/OFF button

4. Press Select to choose ice cube size

5. Wait for 6 - 13 minutes depending on room temp and ice size
6. Ice full and ready when Ice indicator is on

7. When ADD WATER indicator is red, add water and press ON/OFF

How to Clean and maintenance Silonn Slim01W Slim01b

To keep your ice tasting fresh and the unit looking great, we recommend cleaning the ice maker once per week

Manual Cleaning

Step by step on how to manual cleaning of Silonn Slim01W Slim01b ice maker?

Before do the manual cleaning procedures, you must turn off and unplug the power socket from power cord.

1. Remove the basket
2. Cloth wipe with warm water and vinegar, then rinse with clean water
3. Drain plug, drain excess water over shink
4. Clean exterior with cloth using mild dishwashing soap

Self-cleaning methode (30min process)

1. Remove the basket and add water
2. In Standby Mode, Hold for 5 sec to start self-cleaning
3. Drain plug, drain excess water over sink
4. Clean exterior with cloth using mild dishwashing soap

Do's and Don't's while cleaning and amintaining

• Do not use organic solvent, boiled-water, detergent, strong acid and strong alkali etc. for cleaning
• Please empty the water reservoir and dry it for storage if the unit is not used for a long time
• When the unit is not to be used for a long duration, drain the water completely and dry the interior
• Store in a well vented are

Silonn Slim01W Slim01b Spesifications

Troubleshooting Silonn Slim01W Slim01b

Problem Ice Full Light is on

Possible causes and solution:

• Ice is blocking the infrared sensor, try to empty the ice basket
• Infrared sensors do not work, try to wipe clean the infrared sensors, if problem still exist contact customer service.

Problem Ice sticks together

Possible cause and solution:

• Making ice takes too long, try to stop making ice, after the ice melts restart and try again
• The water temperature is too low, try to fill with water temperatures between 8°C and 25°C
• Evaporator deformation, if problem exist please contact customer service

Silonn SLIM01W SLIM01B Not Making Ice Problem

Possible cause and solution:

• Ambient or water temperature is too high, try to keep ambient temperature less than 32°C and fill with cold water
• Water pump is damaged, need to be repaired by professional technician
• Refrigerating system leaking, need to be repaired by professional technician
• Refrigerating system blocked, need to be repaired by professional technician
• The fan stopped working, need to be repaired by professional technician
• The wires are loose, need to be repaired by professional technician
• The gears in the motor are broken, need to be repaired by professional technician

Silonn SLIM01W SLIM01B ADD Water Light is on Problem

• Low water level or lack of water: Stop making ice, refill water, press ON/OFF, then restart and try again
• Water screen blocked at the bottom of the water reservoir: start the self cleaning function
• Pump malfunction: need to be repaired by professional technician
• The water detector malfunction: need to be repaired by professional technician
