Euhomy IM-01X Ice Maker Manual

Introduction

Welcome to the comprehensive guide for your Euhomy IM-01X Countertop Ice Maker. This compact and efficient appliance is designed to provide you with fresh ice quickly and conveniently. As an upgraded version, the IM-01X often features enhanced capabilities or design improvements over its predecessors. Whether you're setting it up for the first time, looking for daily usage tips, or troubleshooting a common issue, this guide covers everything you need to know to get the most out of your IM-01X. We'll walk you through installation, operation, essential maintenance, and provide solutions to common problems, ensuring your ice maker runs smoothly for years to come.

1. Euhomy IM-01X Specifications

Understanding the specifications of your ice maker helps in its optimal use and troubleshooting.

2. Unboxing and Initial Setup

Proper setup ensures your ice maker operates safely and efficiently from day one.

2.1 What's in the Box?

• Euhomy IM-01X Ice Maker Unit
• Ice Basket
• Ice Scoop
• User Manual

2.2 Important Safety and Placement Guidelines

• Power Off: Always ensure the unit is unplugged before cleaning or moving.
• Level Surface: Place the ice maker on a flat, level, and stable table or platform to avoid malfunction.
• Ventilation: Ensure sufficient ventilation. Leave at least 8 inches (20 cm) clearance on all sides of the ice maker for proper air circulation. Avoid placing near heat sources (ovens, heaters) or in direct sunlight.
• Temperature: Operate the ice maker in an environment between 50°F (10°C) and 90°F (32°C).
• No Hot Water: Do not fill the water reservoir with hot water, as this may damage the unit. Use room temperature or colder water.
• Post-Transportation: If the ice maker has been moved or transported, allow it to sit upright for at least 2 hours before plugging it in. This allows the compressor fluids to settle.

2.3 First-Time Cleaning and Preparation

Before making your first batch of ice, it's crucial to clean the unit:

1. Unpack: Remove all exterior and interior packaging, tape, and protective films.
2. Clean Components: Wash the ice basket and ice scoop with mild detergent and warm water. Rinse thoroughly.
3. Clean Interior: Wipe the interior of the water tank and ice storage area with a soft cloth dampened with warm water and a small amount of vinegar or mild detergent. Rinse with a clean, damp cloth.
4. Drain: Ensure the drain plug (usually at the bottom front or back) is open to drain any cleaning solution, then close it securely.
5. Allow to Dry: Let the interior air dry completely before use.

3. Operating Your Euhomy IM-01X Ice Maker

Making ice with your IM-01X is simple and convenient.

3.1 Adding Water

1. Open Cover: Lift the top cover of the ice maker.
2. Remove Ice Basket: Take out the ice basket.
3. Fill Reservoir: Fill the water reservoir with clean, filtered water up to the MAX fill line. Do not overfill.
4. Replace Basket & Close Cover: Place the ice basket back into position and close the top cover securely.

3.2 Powering On and Selecting Ice Size

1. Plug In: Plug the ice maker into a grounded electrical outlet (115V, 60Hz).
2. Power On: Press the ON/OFF button. The green POWER LED will light up, indicating the unit is on. (Note: The compressor may idle for 3 minutes before starting the first cycle).
3. Select Ice Size: Press the SELECT button to choose between two ice cube sizes: Small or Large. The selected size indicator will light up.

3.3 Ice Making Cycle

• The ice making cycle typically lasts 8-13 minutes, depending on the selected ice size and ambient temperature.
• Water is pumped to the evaporator fingers, where ice forms. Once formed, the ice tray tilts, and cubes are dropped into the ice basket.

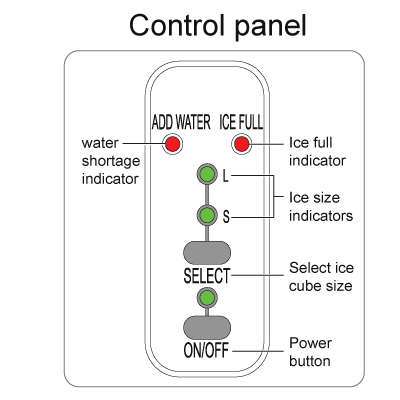

3.4 Indicators and Automatic Functions

• ICE FULL Indicator: When the ice basket is full, the ICE FULL LED light will illuminate, and the ice maker will automatically stop production. Gently remove ice with the scoop. Once the basket is emptied and the cover closed, the unit will resume ice making.
• ADD WATER Indicator: If the water reservoir is empty, the ADD WATER LED light will turn on, and the ice making cycle will stop. Press the Power Button once (it will flash), remove the ice basket, and refill the reservoir. The unit will then resume operation.

3.5 Storing Ice

• The Euhomy IM-01X is an ice maker, not a freezer. Ice will eventually melt if left in the basket. For long-term storage, transfer ice cubes to a freezer.

4. Essential Maintenance and Cleaning Tips

Regular cleaning and maintenance are vital for hygiene, optimal performance, and extending the lifespan of your Euhomy IM-01X.

4.1 Daily / After Each Use

1. Turn Off & Unplug: Press the POWER button and unplug the unit.
2. Drain Water: Open the drain plug (located at the bottom front or back) to drain any remaining water from the reservoir. Close the plug securely.
3. Wipe Interior: Wipe the interior of the water reservoir and ice basket with a clean, damp cloth.
4. Dry: Allow the interior to air dry with the cover open for a while.

4.2 Weekly / Regular Cleaning

1. Deep Clean: Clean the tank and ice basket with diluted detergent, warm water, and a soft cloth. Rinse thoroughly.
2. Vinegar Rinse (for mineral buildup): For a more thorough clean or to address mineral buildup, clean the interior with a soft cloth dampened in a solution of warm water and vinegar. Rinse with a clean, damp cloth.
3. Clean Exterior: Wipe the exterior of the ice maker with a soft, damp cloth. Use a mild dishwashing soap if necessary.
4. Do NOT Clean Evaporator Fingers: Avoid cleaning the evaporator fingers directly.

4.3 Water Quality and Hygiene

• Change Water Regularly: Change the water in the reservoir at least every 24 hours to ensure hygiene and prevent bad-smelling ice.
• Use Filtered Water: Using filtered or distilled water can significantly reduce mineral buildup and improve ice quality.

5. Troubleshooting Common Euhomy IM-01X Ice Maker Issues

Here are solutions to some of the most frequent problems users encounter with their Euhomy IM-01X.

5.1 ADD WATER Indicator Light On (Even When Full)

• Low Water Level: Ensure the water reservoir is filled to the MAX line.
• Sensor Malfunction: Direct sunlight or reflected sunlight can cause the infrared sensor to malfunction. Move the ice maker to a darker location.
• Dirty Sensor: The water level sensor might be dirty or obstructed. Perform a thorough cleaning of the reservoir area.
• Air in Lines: Air in the water lines can sometimes prevent the sensor from detecting water. Try unplugging the unit for a few minutes and plugging it back in to reset.

5.2 Ice Maker Not Making Ice / Low Ice Production

• Insufficient Water: Check water level (see 5.1).
• Compressor Idle: When first turned on or after a power cycle, the compressor will idle for 3 minutes before starting.
• High Ambient Temperature: The ice maker works best in cooler environments (50°F - 90°F). High room temperatures can significantly reduce ice production.
• Poor Ventilation: Ensure adequate clearance (8 inches) around the unit for proper air circulation.
• Mineral Buildup: Hard water can cause mineral deposits to clog internal components. Perform a thorough cleaning and vinegar descaling (see Section 4.2).
• Ice Full Sensor: If the ICE FULL sensor is blocked by ice or debris, the unit might stop making ice. Clear the sensor area.

5.3 Ice Cubes Stick Together

• Water Temperature Too Cold: The water temperature might be too cold. Try using water at room temperature or slightly warmer.
• Ice Making Cycle Too Long: The ice making cycle might be set too long. Stop the ice maker, wait for the ice to melt, then restart and select the SMALL sized ice cubes.

5.4 Ice Maker Making Loud Noises

• Normal Operation: Some noises (like gurgling, whirring, or the sound of ice dropping) are normal during operation.
• Loose Components: Ensure the unit is on a level and stable surface. Check for any loose parts.
• Mineral Buildup: Excessive noise can sometimes indicate mineral buildup affecting the pump or other moving parts. Perform a thorough descaling.

5.5 No Indication on Control Panel / Unit Not Turning On

• Power Disconnected: Check that the power plug is securely plugged into a grounded electrical outlet.
• Power Outage: Verify that there is power to the outlet.
• Internal Fuse: In rare cases, an internal fuse might have blown. This would require professional service.

5.6 Troubleshooting Summary Table
