Dyson V15 Detect Vacuum Troubleshooting & User Manual

Product Overview

The Dyson V15 Detect™ represents the pinnacle of cordless vacuum technology, featuring advanced laser dust detection, intelligent suction adjustment, and comprehensive particle analysis. This revolutionary cleaning system combines powerful cyclonic suction with smart technology to deliver unparalleled cleaning performance across all floor types.

Key Features

The V15 Detect incorporates several groundbreaking technologies that set it apart from conventional vacuum cleaners. The laser dust illumination system reveals microscopic particles invisible to the naked eye, while the piezo sensor continuously monitors and counts dust particles in real-time. The LCD screen provides detailed feedback about your cleaning progress, displaying particle counts across four different size categories.

The Digital Motorbar™ cleaner head automatically adapts its power based on floor type, ensuring optimal cleaning performance whether you're working on hardwood, carpet, or delicate rugs. The anti-tangle comb technology prevents hair and debris from wrapping around the brush bar, maintaining consistent performance throughout your cleaning session.

Step-by-Step Setup Guide

Initial Unboxing and Assembly

1. Unpack Your V15 Detect

   Carefully remove all components from the packaging. Your V15 Detect package includes the main body, wand, Digital Motorbar™ cleaner head, Laser Slim Fluffy™ cleaner head, combination tool, crevice tool, hair screw tool, charging dock, and power adapter.

2. Assemble the Main Unit

   Connect the wand to the main body by aligning the connection points and pushing firmly until you hear a click. The connection should be secure and stable. Attach your chosen cleaner head to the bottom of the wand using the same clicking mechanism.

3. Install the Charging Dock

   Choose a location near a power outlet with enough clearance for the vacuum. Mount the dock to the wall using the provided screws, ensuring it's level and secure. The dock should be positioned so the vacuum hangs straight when docked.

4. Initial Battery Charge

   Before first use, charge the battery for at least 3.5 hours. Connect the charger directly to the vacuum or place it on the charging dock. The LED indicator will show charging progress and turn solid when fully charged.

Filter Installation and Preparation

1. Install the Filter

   Locate the filter housing at the top of the main body. Insert the filter by aligning the tabs and turning clockwise until it clicks into place. Ensure the filter is completely dry before installation.

2. Check Bin Installation

   Verify that the clear bin is properly seated in the main body. The bin should click securely into place with no gaps or loose connections. The red bin release button should move freely.

3. Test Basic Functions

   Power on the vacuum using the trigger and test each power mode (Eco, Auto, and Boost). Verify that the LCD screen displays properly and shows battery level, power mode, and particle detection data.

Operating Your Dyson V15 Detect

Understanding the LCD Display

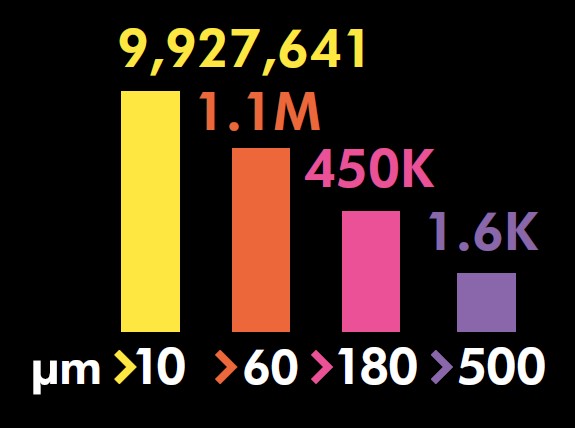

The LCD screen is your window into the V15 Detect's intelligent cleaning system. The display shows real-time particle count data, categorizing debris into four size ranges: 10-60 microns, 60-180 microns, 180-500 microns, and 500+ microns. This information helps you understand the effectiveness of your cleaning and when an area is truly clean.

The screen also displays battery life remaining, current power mode, and any maintenance alerts. During cleaning, you'll see a live graph showing particle pickup, which can help you identify areas that need additional attention.

Power Modes and When to Use Them

Eco Mode

Eco mode provides up to 60 minutes of runtime and is ideal for light cleaning tasks on hard floors and low-pile carpets. This mode conserves battery while still providing effective suction for everyday maintenance cleaning.

Auto Mode

Auto mode is the recommended setting for most cleaning tasks. The vacuum automatically adjusts suction power based on the amount of debris detected, optimizing both cleaning performance and battery life. This intelligent mode increases power when more debris is detected and reduces it in cleaner areas.

Boost Mode

Boost mode delivers maximum suction power for deep cleaning tasks, stubborn debris, and high-pile carpets. While this mode provides the strongest cleaning performance, it significantly reduces battery life to approximately 8 minutes of runtime.

Cleaner Head Selection

Digital Motorbar™ Cleaner Head

The Digital Motorbar™ is your primary tool for carpets and rugs. Its anti-tangle technology prevents hair wrap-around, while the dynamic brush bar automatically adjusts to different carpet heights. Use this head for deep cleaning carpeted areas and removing embedded dirt and pet hair.

Laser Slim Fluffy™ Cleaner Head

The Laser Slim Fluffy™ head is specifically designed for hard floors. The integrated laser illuminates microscopic dust particles, making them visible so you can see exactly what you're cleaning. The soft roller is gentle on delicate surfaces while effectively capturing both large debris and fine dust.

Maintenance and Care

Don't forget to maintain your Dyson V15 Vacuum cleaner to get best performance and longterm use

Regular Filter Cleaning

Proper filter maintenance is crucial for optimal performance and longevity of your V15 Detect. The filter should be cleaned monthly under normal use conditions, or more frequently if you vacuum in particularly dusty environments or use Boost mode regularly.

1. Remove the Filter

   Turn off and unplug the vacuum. Twist the filter counterclockwise and gently pull it away from the machine. Handle the filter carefully to avoid damage to the pleated material.

2. Pre-cleaning Preparation

   Gently tap the filter to remove loose dust and debris before washing. This step helps prevent clogging your sink and makes the washing process more effective.

3. Wash the Filter

   Rinse the filter under cold running water, gently rubbing with your fingers to remove embedded dirt. Fill the filter with water, cover both ends with your hands, and shake vigorously to dislodge trapped particles. Repeat until water runs clear.

4. Drying Process

   Shake out excess water and place the filter foam-end up in a well-ventilated area. Allow 24 hours minimum drying time before reinstalling. The filter must be completely dry to prevent motor damage and maintain suction performance.

Bin and Cyclone Maintenance

Regular cleaning of the bin and cyclone assembly ensures optimal airflow and prevents odor buildup. Empty the bin when it reaches the MAX fill line, and perform deep cleaning weekly or as needed.

1. Empty the Bin

   Hold the vacuum over a trash receptacle and press the red bin release button. The bottom of the bin will open, allowing debris to fall out. Tap gently if needed to dislodge stubborn particles.

2. Remove and Clean the Bin

   Detach the bin from the main body by pressing the release mechanism. Wash the bin with warm water and mild soap if necessary. Ensure all parts are completely dry before reassembly.

3. Clean the Cyclone Assembly

   Use a dry microfiber cloth to wipe down the cyclone assembly. Do not use water on the cyclone components, as moisture can damage the internal mechanisms and affect performance.

Brush Bar Maintenance

The brush bars in your cleaner heads require periodic maintenance to ensure optimal performance and prevent damage from tangled hair and debris.

1. Remove Hair and Debris

   Use the provided hair screw tool or scissors to carefully cut away any hair or string wrapped around the brush bar. Work systematically along the length of the brush to remove all tangles.

2. Check for Damage

   Inspect the brush bar for worn or damaged bristles. Replace the cleaner head if bristles are significantly worn or if the brush bar doesn't rotate smoothly.

3. Clean the Housing

   Wipe down the cleaner head housing with a damp cloth, ensuring no moisture enters the motor housing. Check that all moving parts operate smoothly and that there are no obstructions.
