About Black+ Decker BPACT08WT Portable Air Conditioner
This BLACK+DECKER portable air conditioner is more than just an AC unit. It's a versatile, three-in-one powerhouse that also works as a dehumidifier and a fan. With a cooling capacity of 9,000 BTU (5,300 BTU SACC), it's designed to efficiently cool spaces up to 400 square feet, ensuring you stay comfortable all summer long.
Smarter Cooling with the "Follow Me" Feature
Take control of your comfort with the included full-function remote control. This remote has a unique "Follow Me" function that turns it into a portable thermostat, allowing the AC unit to adjust the temperature based on your exact location in the room. This ensures precise, personalized cooling wherever you are.
Effortless Setup and Mobility
Designed for convenience, this compact AC unit (15.3” x 14” x 24.8”) is built for easy mobility. Casters on the bottom and side handles on both sides make it simple to move from room to room. The unit also comes with an easy-to-install window kit, so you can get cool air flowing quickly without any hassle.
About BPACT08WT Instruction Manual
This user manual explain about safety instruction, how to setup, how to use, maintenance and troubleshooting the Black Decker portable air conditioner. You must read the instruction in this user guide carefully before use the product.
Instruction Manual Contents
- SAFETY INFORMATION
- Important Safety Instructions
- Handling Alkaline Batteries
- Grounding Instructions
- LCDI Power Cord and Plug
- Safety Guidelines
- Operating Conditions
- HOW TO SET UP AND USE
- Parts & Features
- Installation Guide
- Window Slider Kit Installation
- Exhaust Hose Installation
- Control Panel
- Operating from the Control Panel
- Operating from the Remote Control
- Remote Control
- Water Drainage
- CLEANING & CARE
- TROUBLESHOOTING & WARRANTY
- Before You Call For Service
- Customer Service
- Troubleshooting
- Limited Warranty
Installation Guide
Location
- The air conditioner must be placed on a firm floor to minimize noise and vibration. For safe and secure positioning, place the unit on a smooth, level floor strong enough to support the portable air conditioner
- The unit has casters to aid placement, but it should be rolled on smooth, flat surfaces. Use caution when rolling on carpet surfaces. Do not attempt to roll the unit over objects.
- The unit must be placed within reach of a properly rated grounded socket.
- Never place any obstacles around the air inlet or outlet of the unit.
- A removal air-conditioner shall be installed in the flat and empty place all around. Don't block the air outlet, and the required distance around should be at least 80cm, required distance above should be at least 50cm.
Suggested tools for Window kit Installation
- Screwdrivers (medium size Philips)
- Tape measure or ruler
- Knife or scissors
- Saw (in the case that the window kit needs to be cutdown in size because the window is too narrow for direct installation)
Window Slider Kit Installation
The window slider kit has been designed to fit most standard vertical and horizontal window applications; however, it may be necessary for you to improvise/modify some aspect of the installation procedures for certain types of windows. Minimum: 26.5 inch (67.5 cm) and maximum 48.4 inch (123 cm) window openings.
A plastic locking pin is holding the window slider kit together during shipment. Prior to installation, remove plastic locking pin, adjust to desired length and use provided metal locking screws to secure.
If the window opening less than 26.5", the minimum lenght of the window slider kit, cut the one with a hole in it short to fit for the window opening. Never cut out the hole in window slider kit.
Double-hung sash/Sliding casement window installation
- Cut the foam seal (adhesive type) to the proper length and attach it to the window sash.
- Attach the window slider kit to the window sash. Adjust the length of the window slider kit according to the width of window. Shorten the adjustable window kit if the width of window is less than 26.5".
- Cut the foam seal (adhesive type) to the proper length and attach it on the top of the window.
- Close the window securely against the window slider kit.
- Secure the window slider kit to the window sash.
- Cut the foam seal to an appropriate length and seal the open gap between the top window frame and outer window frame.
Exhaust Hose Installation
The air exhaust hose and hose inlet must be installed or removed from the portable air conditioner in accordance with the way it is being used: COOL, DEHUMIDIFY and HEAT (Heat model BPACT12HWT and BPACT14HWT only): Air exhaust hose and hose inlet should be connected to the portable air conditioner. FAN: Air exhaust hose and hose inlet should be disconnected from the portable air conditioner.
To install:
- The hose outlet and inlet are pre-assembled to the air exhaust hose
- Align the hose inlet with the slots over the air exhaust hose housing outlet to assemble.
- Insert the hose outlet into the window panel
- Affix the hose outlet into the window slider kit and seal
The exhaust hose can be compressed or extended moderately, but it is desirable to keep the length to a minimum. Also make sure that the hose does not have any sharp bends.
Cleaning and Care
Before cleaning or maintenance, please turn the appliance off by pressing On/Off button on the control panel or remote control then unplug from the electrical outlet.

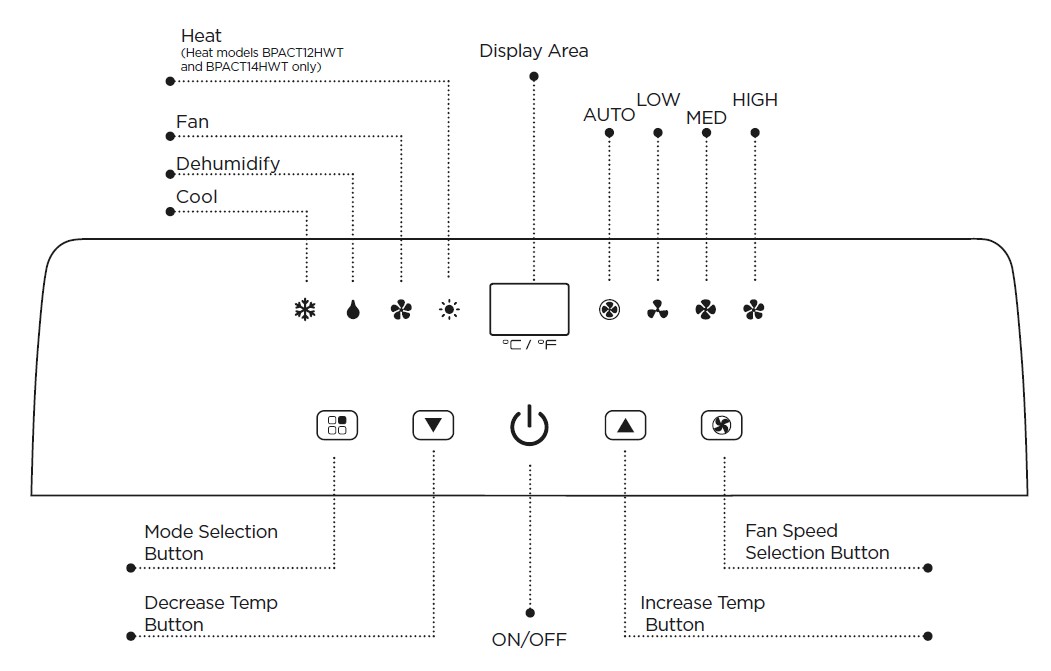

Black Decker BPACT08WT Control Panel
Cleaning the Cabinet
You should clean the appliance with a slightly damp cloth then dry with a dry cloth.
• Never saturate the air conditioner with water.
• Never use petrol, alcohol or solvents to clean the appliance.
• Never spray insecticide liquids or similar near the air conditioner.
Cleaning the Filter
To keep your air conditioner working efficiently, you should clean the evaporator filter every week of operation. The filter is housed in the intake grill. Use a vacuum cleaner to remove dust accumulations from the filter. If it is very dirty, immerse in warm water and rinse a number of times. The water should be luke warm. After washing, leave the filter to dry the re-insert the filter.
Troubleshooting
Troubleshoot your problem by using the chart below. If the air conditioner still does not work properly, contact BLACK+DECKER customer service center or the nearest authorized service center. Customers must never troubleshoot internal components.
| Trouble | Possible cause | Possible remedy |
|---|---|---|
| Unit does not start when pressing On/Off button | The water tank may be full if LED display indicates "E2" in Cool or Dehumidify mode, or "E4" in Heat mode |
Drain the water Reset the temperature |
| Not cool enough |
|
|
| Noisy or vibration | The surface is not level or not flat enough | Place the unit on a flat, level surface if possible |
| Unit does not run and indicates "E2" in Cool or dehumidify mode or "E4" in Heat mode | The unit needs to be drained | Refer to water drainage section |
| Led display "E0", "E1" or "E3" |
E0 : Room temperature sensor issue E1 : Condenser temperature sensor issue E3 : Evaporator temperature sensor issue |
Contact the customer satisfaction center for assistance with error code |
| Remote is not working |
|
|
Download Black+ Decker BPACT08WT Portable Air Conditioner User Manual
| Brand | Black and Decker |
| Model | BPACT08WT |
| Category |
Air Conditioner |
| File Size | 1.68 MB |
| Pages | 26 Pages |
| Language | English |
| 1011 views | |
For more detailed instructions, you can download and read the Black Decker BPACT08WT Portable air conditioner User Manuals on the link provided above.
This manuals compatible with : BPACT14WT BPACT10WT BPACT12WT BPACT12HWT BPACT14WT BPACT14HWT
